M800 Edge blending processor

  • MatrixWorks Europe BV and Dutch integrator MAV Techniek have collaborated to recreate F-16 experience in the exhibition F-16: 50 YEARS FAST FORWARD, using GeoBox edge blending and warping controllers to create immersive projection during F-16 exhibition at National Military Museum in The Netherlands, from August 2022 till September 2023.

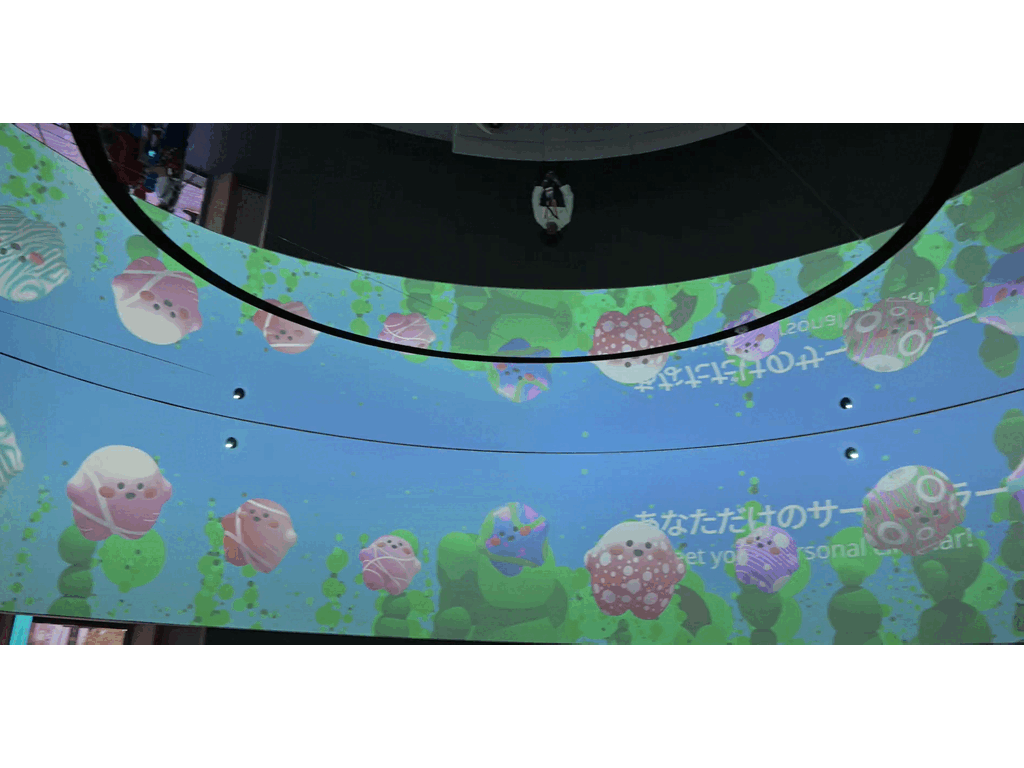

  • More than 120 units of GeoBox was adopted in Tokyo Digital Art meseum project. This project was integrated with 470 units of Epson projectors.

  • Immersive display with 3 walls and one floor. Each wall size can be different. GeoBox has the ability to split the image based on the wall dimension to avoid different scaling factor in each wall. GeoBox can also align all the images to match together and has the same brightness in each projector.  {G800}   {M800}

  • User can apply single contents to the system and GeoBox can crop the right image for each projectors with the same scaler factor to get perfect immersive display. No additional PC or device is required.

  • GeoBox edge blending system has the flexibility to preset different display styles. For example, user can have 3 projectors edge blending to become one image, two projectors edge blended or three projectors to display independent contents. These different display modes can be stored in GeoBox and recalled by RS232, Ethernet or remote controller at any time.   {M800}

  • Interactive floor edge blending is one of the most common application. There is no limitation in the quantity of the projectors. User can cascade with multiple units of GeoBox edge blender for the application. The key point is how to select suitable image regsolution. After select image resolution, user needs to consider how to create the content and how to output from multiple PC or media player. The output signals require to be synchronized.

  • Typical simulattion system is dual curved screen. The FOV is 120 degrees in width. Most application uses three projector with 5760*1200 @60Hz input resolution. User can use one M803 to meet the requirements for this kind of simulation system. If necessary, user still can use old simulation system with multiple PC or multiple outputs from display card to provide high resolution image.   {M800}

  • Each M800 can support up to 8k/2k input and split the image for up to 4 projectors. Two M800 can support up to 16k/2k or 8k/4k input resolution for 8 projectors with 2x M800. User can use 4x M800 to control up to 16 projectors.

  • Large scale immesive can be implemented through more projectors. This is the case in Korea.
