Medical 3D format converter

products
Description

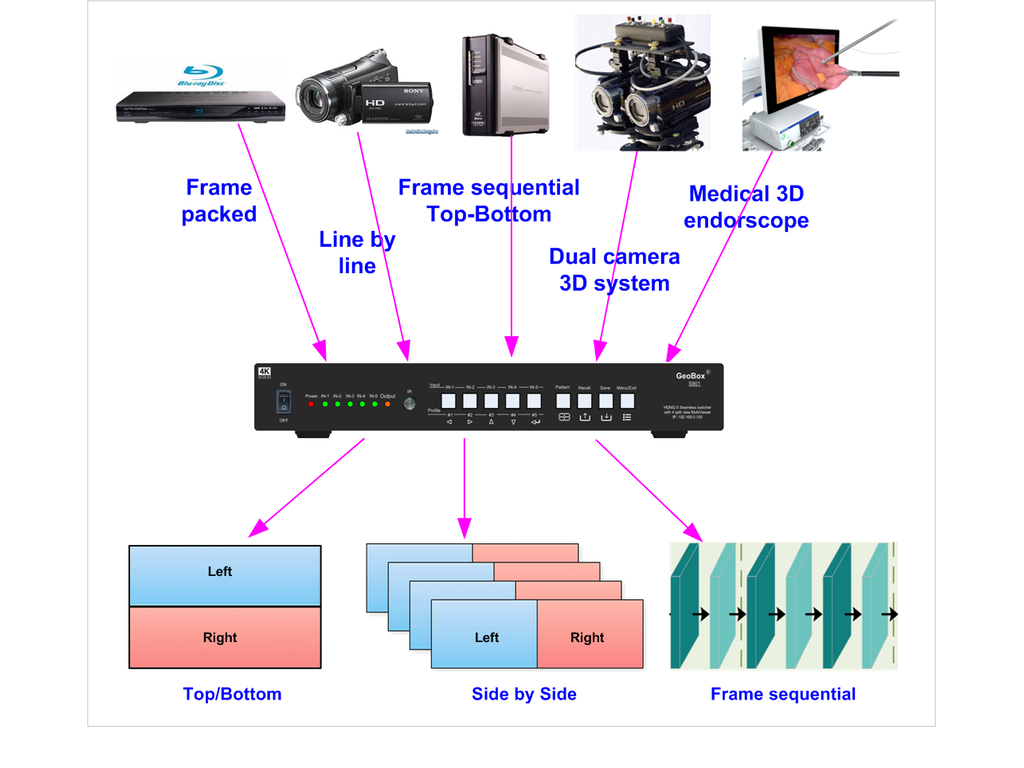

Medical devices may have special 3D formats and can't be displayed in conventional 3D display devices. GeoBox can convert this kind of 3D format into side by side format so that it can be supported by most of 3D devices. G106 is the device that can convert line by line (line interleaved), frame sequential or dual camera 3D formats into side by side 3D format for conventional 3D display devices.

G602 can decode 3D signal into RH/LH signal output to two projectors to display passive 3D image throuhg polarizer and 3D glasses. It is the most comfortable 3D system for long time watching like imax 3D system. Besides 3D decoding, G602 can do accurate two projector image stacking as well as edg blending to build large screen 3D sysem with 4 projectors.

Model Selction





    Products

  • HTML template
    G901 UHD 3D format converter

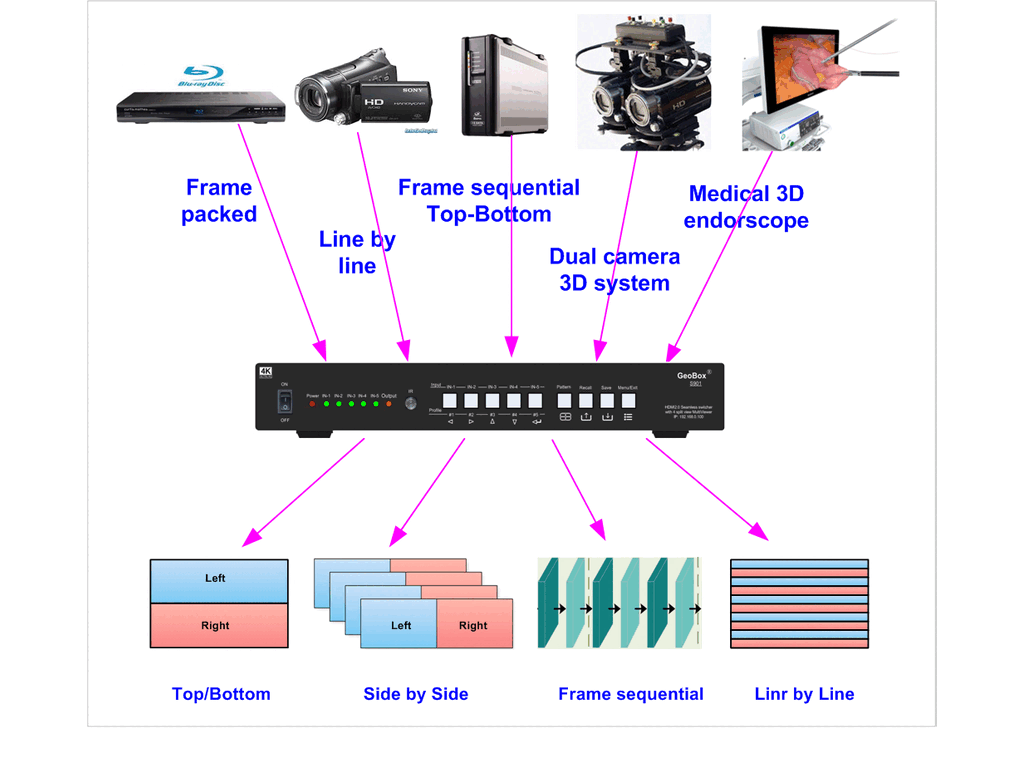

    G901 is an ideal 3D processor for 3D format conversion and decode 3D signal for passive 3D and active 3D display.  It supports medical display with line by line, line interleaved, and dual camera 3D formats and convert into side by side, top/bottom or frame sequential output. it also supports 3D decoding and processing for active 3D and passive 3D display. It is integrated with seamless switcher, format conversion, scaling up and down, image flip/rotation/cropping, video wall, PIP/POP, 3D Format conversion and multi-viewer functions. The input supports can be from PC, Blue Ray DVD, game console or medical endoscope.

  • HTML template
    UD101L UHD 3D format converter with warp

    UD101L is multiple purpose 4k warping processor with 3D format conversion function. The major difference with G901 is that UD101L is embedded with warp function. All the other 3D convertion function is the same as G901. User can use IR controller, USB, Ethernet or WebGui to perform all the setup.
