S902 Quad View Event Controller
Quick Overview
The S902 is a 4x2 UHD Quad-View processor that allows users to display up to four 4k/60 sources simultaneously on one or two UHD displays. This device offers a highly flexible and cost-effective solution for routing up to four 4k/60 sources to two separate displays simultaneously. Users can choose from 12 default multi-view layout presets and 20 custom Profile Presets to customize their display mode. Allow editing and preview different layout while live time playback
Each output display shows up to 4 Windows with real time flexible layout. Each window input source, size, scaling, positioning, cropping, overlap priority and color correction can be flexibly adjusted at real time through IR controller, SCT PC tool and WebUI. PIP/POP and Overlapping are included.
Featuring 4 HDMI 2.0 inputs and 2 HDMI 2.0 outputs, the S902 supports CEA video standard timings up to 4096*2160 @60Hz with 4:4:4 chroma sampling. Each output port can accommodate up to 4 windows, with each window capable of selecting an input source from any input port. Quad

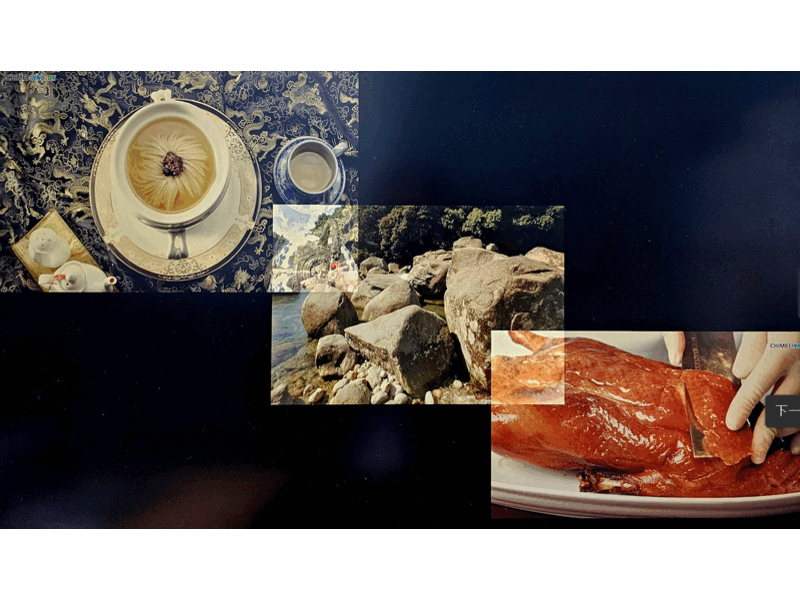

Users can prioritize display windows when they overlap and select one or multiple windows with the same configuration for any output port. The device offers alpha blending and 16 transition modes, including high speed seamless switching, Fade-in, Fade-out, Dissolve, and Wipe, with selectable duration for transitions. It integrates HDMI embedded audio, RCA SPDIF digital audio, and analog 3.5mm R/L audio jack R/L, allowing users to assign audio from input ports to each audio output port as needed. User can capture full color 4k image as background or add logo with any size at any position.
Customized background and image alpha blending are embedded. The background image resolution can be up to 4k2k/60Hz. Users can select background image from PC or any display Window. One programmable basic background color and 3 selectable background images can be stored in the system.
Control options for the unit include IR controller, front panel push button, USB, SCT PC Tool, WebUI, and Ethernet (including UDP), providing versatile control methods for various applications. Users can recall up to 20 custom Profile Presets through different control systems. Designed for continuous operation in a 24/7 environment, the S902 offers easy configuration, low entry barriers, cost-effectiveness, reliability, and flexibility for a wide range of applications.
Application
- Front end processor for large display, such as LED, edge blending system and video wall.
- Digital signage
- Security & surveillance systems
- Education
- Conference room
- Presentation halls
- Video content post production
- Video editing studio
- Input ports: 4x HDMI 2.0. input resolution: 4096*2160 @60Hz.
- Supports interleaved and progressive RGB/YUV input signals with 4:2:0/4:2:2/4:4:4, 8/10-bit color.
- Supports VESA/CEA standard video timings with high end scaling up and down up to 600 MHz.
- Two simultaneous HDMI 2.0 output with the same output resolution up to 4096*2160 @60Hz, shared the same signal sources and display Windows. Two outputs can select the same or different input signals.
- Each Window can select one input signal from any input port. The same signal source can be assigned to multiple windows.

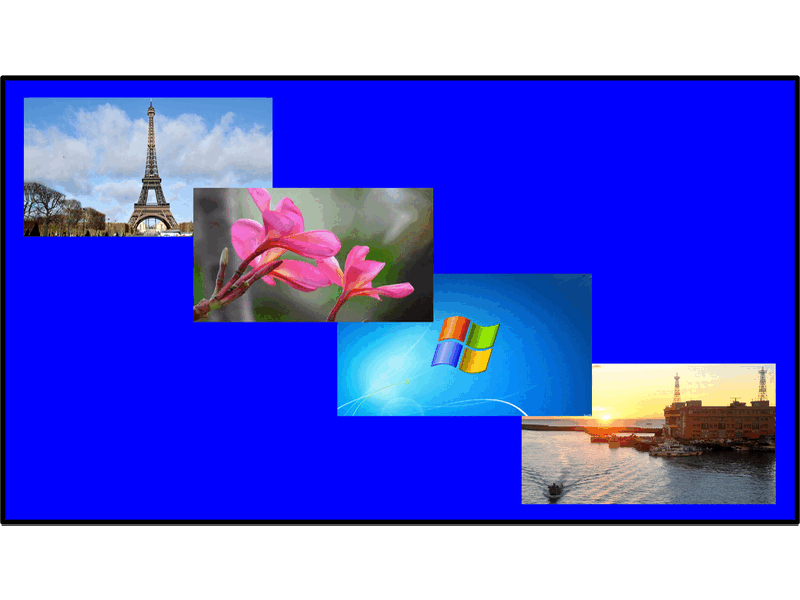

- Each output display shows up to 4 Windows with flexible layout, window location, resizing, scaling, positioning, cropping, overlap priority and color correction. PIP/POP and Overlapping are included.
- User can set Overlap priority in each output port separately.
- If two output ports select the same display Windows, it will show the same Window setup. If select different Windows, user can adjust Window setup independently.
- Support alpha blending, 16 Transition effects including Seamless, Fade-in, Fade-out, Dissolve and Wipe. Only Fade-in/Out is functional in multiple Windows mode switching.
- Quick seamless switching in source selection and display mode switching.
- Output format: selectable among RGB444, YUV444, YUV422 and Deep color (8-bit or 10-bit).
- HDCP: V2.2/V1.4 compliant.
- Support xvYCC 8/10/12-bit wide color gamut input signal processing.
- 1-2 frame latency based on different application: 16.7ms-33.3ms (V=60Hz)
- Preset 14 output timings and 12 EDID from XGA to 3840*2400 @60 for each input port.
- Support 24/25/30/50/60/59.94Hz input/output refresh rate.
- Selectable OSD transparency and turn-off time.
- Image freeze, flip and upside down.
- Designed with Alpha Blending function and full color background image.
- While playback one Profile, SCT [Live and Edit] mode allow preview or edit other Profile at the same time.
- Box ID # from 0-99 for multiple boxed individual control.
- Standby mode when no input signal is detected.
- 12 system presets and 20 custom Profile presets. The preset includes transition effect.
- Selectable high end video processing: 3:2/2:2 cadence, diagonal correction and noise reduction.
- High quality scaling engine for image scaling up and down in the range from XGA to 4k/2k.
- 3D motion adaptive de-interlace for interlaced input.
- Programmable background with customized picture and logo.
- Embedded HDMI audio, SPDIF digital and analog R/L 3.5mm Jack audio outputs (abstracted from SPIDIF audio). Each output can select independent audio signal source from the input ports.
- Control: Front panel keypad, IR remote controller, RS232, Ethernet (including UDP & WebUI), USB and SCT PC Tool.
- ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
- DC power supply: DC adapter: 12V 2A (100V-240V), max. Power consumption: 22.5W, standby: 1.9W
- Working environment: 40〫C, 10-90% RH
- Dimensions (Body only): 440mm*160mm*41mm (without protruding parts).
- Weight: 2.4kg (body only)
- CE/FCC/RoHS Certified
- 2 Year Warranty, extension package is available up to 5 years.
